Short Shaft vs Long Shaft | How to Measure Your Boat Transom
TL;DR: Shaft length is the distance from where the outboard mounts to where the propeller sits, and it has to match your boat's transom height. Measure your transom from the top centre straight down to the bottom of the hull, then match that number to a short (15-inch), long (20-inch), or extra-long (25-inch) shaft. Get this wrong, and the engine either drags in the water or sits too high to bite, so measure before you buy.
Key Takeaways
- Shaft length must match your boat's transom height, not your horsepower.
- Measure the transom from the top centre straight down to the lowest point of the hull.
- Short shaft is about 15 inches, long shaft about 20 inches, extra-long about 25 inches.
- A shaft that is too short lets the prop ventilate; too long adds drag and hurts performance.
- When in doubt, measure twice and confirm before ordering, because the wrong shaft is a costly mistake.
What Does Shaft Length Actually Mean?

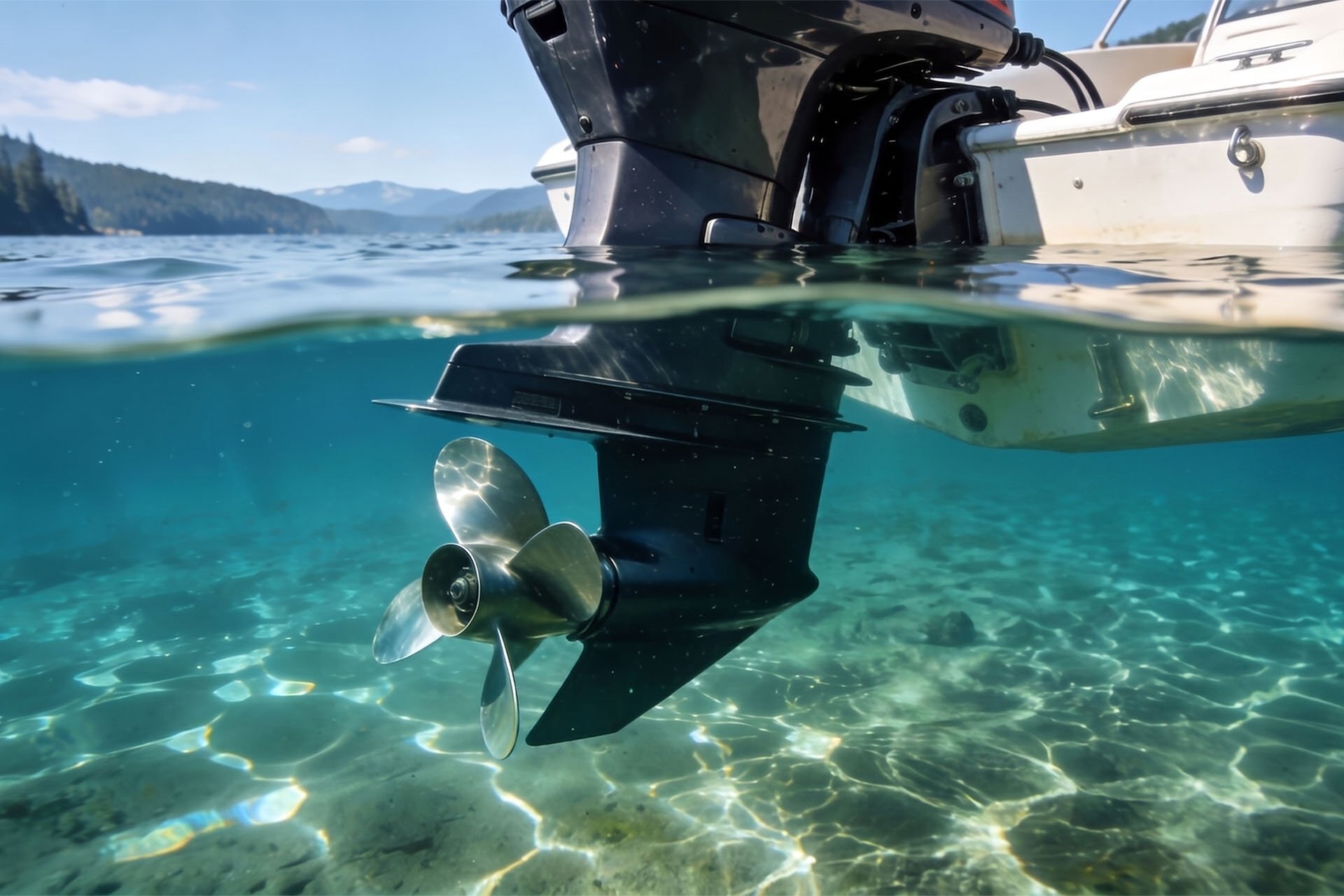

Think of it as the engine's leg. Shaft length is the distance between the mounting bracket up top and the propeller down at the bottom. The powerhead sits on the transom, and that long vertical leg drops into the water with the prop at the end.
The whole job of that leg is to put the propeller at the right depth. Too high and it sucks air. Too low and it drags. Shaft length is just how you land the prop in the sweet spot for your boat.
And here is the thing that trips up almost every first-time buyer: shaft length has nothing to do with how powerful the engine is. A 9.9hp and a 20hp can both come in short or long versions. The shaft is about your transom, not your top speed.
Pro Tip: Shaft length is matched to the boat, not the motor. Start with the transom measurement, then shop for an engine that fits it.
What Are the Standard Shaft Lengths?
Outboards come in a handful of standard lengths, and most portable engines stick to the first two. Knowing the names just saves you some head-scratching when you are squinting at a spec sheet.
The Three Common Sizes
- Short shaft: roughly 15 inches (38 cm). You will see these on small tenders, dinghies, and a lot of aluminum fishing boats.
- Long shaft: roughly 20 inches (51 cm). Common on inflatables, sailboats, and anything with a taller transom.
- Extra-long shaft: roughly 25 inches (64 cm). These show up on larger or specialty hulls, and they are rare in the portable range.
One thing to keep straight: those numbers describe the transom height the shaft is built for, not the exact length of the leg. A "20-inch" long shaft is made to fit a 20-inch transom.
Why the Names Can Mislead
Do not read "long" as "better." Long is not an upgrade; it just fits a taller transom. Matching the right size to your boat is the only thing that matters here, so ignore the temptation to size up for no reason.
How Do You Measure Your Transom?
This is the step that saves you from buying the wrong engine, and it takes about two minutes. All you need is a tape measure, plus a straight edge if your transom has a notch in it.
The Measurement, Step by Step
- Find the centre of the transom. That is the flat board at the very back of the boat where the engine clamps on.
- Measure from the very top of the transom straight down to the lowest point of the hull bottom.
- Keep the tape vertical and straight. Do not let it follow the angle of the transom.
- Write the number down. That is your transom height.
Matching the Number to a Shaft
Now, line your transom height up with a shaft length:
- Around 15 inches points to a short shaft.
- Around 20 inches points to a long shaft.
- Around 25 inches points to an extra-long shaft.
Land between two sizes? That is worth a quick chat before you order. A boat that measures 17 or 18 inches is not a clean fit either way, and the right call depends on the hull.
Not sure where your number lands? Our Outboard Finder can match your boat details to the right portable engine in a couple of clicks, shaft length included.
Pro Tip: Measure at the centre of the transom, not the corners. The corners can sit higher or lower than the middle, and the centre is where the engine actually mounts.
What Happens If You Get It Wrong?
A mismatched shaft is not a small annoyance you can shrug off. It changes how the boat runs, and in some cases, it can leave you stuck out on the water.
If the Shaft Is Too Short
A short shaft on a tall transom leaves the prop too high. Instead of biting clean water, it pulls in air, which is called ventilation. You lose thrust, the engine over-revs, and the boat fights to get going at all.
If the Shaft Is Too Long
A long shaft on a short transom drops the engine too deep. That extra leg drags through the water, which kills your speed and burns more fuel. In rough water, the lower unit can catch waves it should be clearing.
Either way, you are left with a boat that just does not run right. That is exactly why this measurement matters more than almost any other number when you are buying.
Does Boat Type Give Me a Hint?
Your boat type can nudge you in the right direction before you even grab the tape, though it never replaces the actual measurement.
Common Pairings
- Small aluminum boats and tenders often take a short shaft.
- Inflatables and dinghies frequently need a long shaft because of how the transom sits.
- Sailboats usually want a long or extra-long shaft so the prop stays underwater when the boat heels over.
Treat these as a starting hint, then confirm with the real measurement. Boats vary, and your transom is the only number that actually counts.
When to Call Us
Measuring a transom is something most owners can knock out at home with a tape measure, and matching it to a shaft length is usually pretty simple. The grey area is the in-between measurement.
If your transom lands between standard sizes, or you are buying for an unusual hull like a sailboat or a modified boat, it is worth a quick check before you order. A two-minute conversation up front costs nothing and saves you from buying the wrong engine. Reach out, and we will help you confirm the right shaft for your boat.
The Bottom Line
It all comes down to one number: your transom height. Measure from the top centre straight down to the bottom of the hull, then match it to a short, long, or extra-long shaft. Get it right, and the boat runs the way it should. Get it wrong, and you are looking at poor performance or a return. The measurement takes two minutes, so go take them.
