Mercury 5MXLH Motor 25" Shaft 5hp FourStroke

Name: Mercury 5MXLH Motor 25" Shaft 5hp FourStroke
Brand: Mercury
Availability: InStock

Stock # 1F05221KK

Sold

Retail: $2,280 CAD

$1,805 CAD

Savings $475

Get a Quote Get Financed Value a Trade

Model

ME 5 MXLH 4S

Category Name

Outboard Engines

Year

2025

Sale Type

New

Manufacturer

Mercury

Quantity

Manufacturer Qty

Bore

2.32" x 1.77" / 59mm x 45mm

Type

Manual

Overview

Mercury portable outboard motors are small in size and big on dependability, with plenty of power to handle small jon boats, tender boats, small inflatables and small aluminum boats. They feature a lightweight, compact design for convenient transport, an on-engine fuel tank and a quick-clamp transom bracket for easy installs. From remote waters to your local lake, these rugged little outboards are ready to handle all your adventure needs.

Specifications

Model

ME 5 MXLH 4S

Category Name

Outboard Engines

Year

2025

Sale Type

New

Manufacturer

Mercury

Bore

2.32" x 1.77" / 59mm x 45mm

Type

Manual

Class

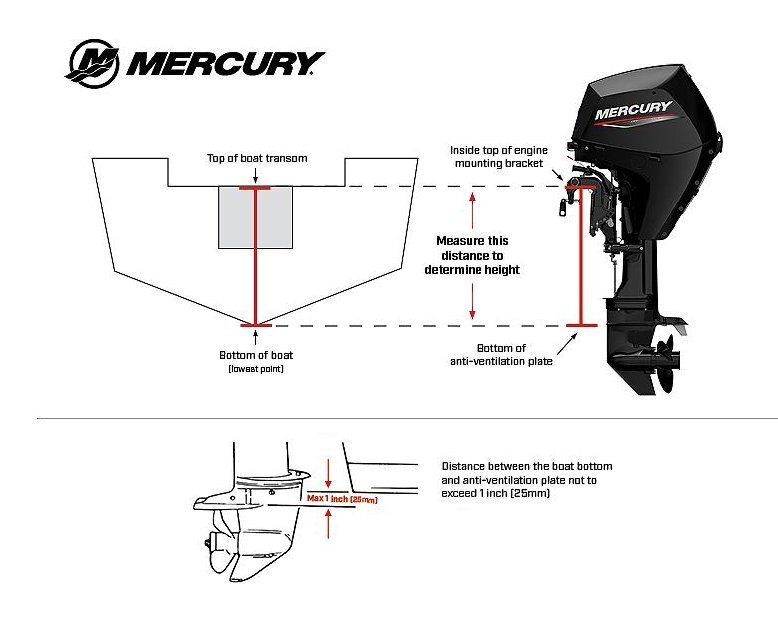

Length

25" (Extra Long)

Series

Stroke

Tiller

WebUnit

CodeName

1F05221KK

Gearcase

Standard

Steering

Manual

Code Name

1F05221KK

Fuel Tank

Integral with External Connector

Propeller

Included

Dry Weight

60 lbs/27.2 kg

Gear Ratio

2.15:1

Midsection

CMS

Model Code

1F05221KK

Fuel System

Carbureted

Horse Power

Trim System

Side/Front

Titlestatus

CLEAN

Model Config

MXL

Title Status

CLEAN

Air Induction

Naturally Aspirated

Prop Rotation

Right Hand (Standard)

WOT RPM Range

1 cylinder

Unitcondition

EXCELLENT

Throttle/Shift

Four Stroke

Unit Condition

EXCELLENT

Cylinders/Config

In-Line

Cylinders/Number

1 Cylinder

Entity Description

Mercury Marine

Gauge Compatibility

Analog

Displacement - Liters

0.123

Smartcraft Compatible

Standard

Emission Certification

EPA / CARB3

Displacement - Cubic Inch

7.5
